Quick answer: Addressable fire alarm kya hota hai? Ye aisa system hai jisme har detector aur manual call point ka apna address hota hai, isliye panel jagah ka naam batata hai — “Second floor, server room, detector 14” — zone number nahi. IS 2189 conventional zone mein 30 metre tak search distance allow karta hai; addressable system wo search khatam kar deta hai.
Aag ke baad sabse mehnga minute wo hai jo panel ke saamne khade hokar nikal jaata hai: “Zone 4 matlab kaunsa hissa?” Bade floor par ye sochna paidal chalna ban jaata hai. Sawaal 2026 mein aur zaroori hai, kyunki BIS ne NBC 2016 ki jagah SP 7:2026 National Building Construction Standards, Part F laagu kar diya hai.
Ek nazar mein — TL;DR
- Addressable panel har device alag pehchanta hai; conventional panel sirf zone.
- IS 2189:2008 cl. 4.2.2: non-addressable zone mein search distance 30 m se zyada nahi.
- Ek loop 3,000 m se lamba nahi, wire 1.5 mm² se patli nahi, loading 90 percent tak.
- Ek loop par 8 se zyada zone nahi, har zone mein kam se kam do isolator.
- SP 7:2026 Table 7E: business building 500 m² ya 15 m, kisi bhi ek limit ke upar alarm required.
Addressable fire alarm kya hota hai aur conventional se kya farq hai?
Addressable system wo hai jisme panel har device ko alag se pehchanta hai. BIS ke IS 2189:2008 clause 3.4 ki bhasha: “signals from detectors, manual call points, or any other devices are individually identified at the control and indicating equipment.” Conventional system mein ye pehchan zone level par rukti hai: panel par ek lamp, uske peeche 20 tak detector (clause 4.1.2).
IS 2189:2008, clause 4.2.2: non-addressable zone ka floor area 2,000 m² se zyada nahi, aur “the search distance… shall not exceed 30 m”. Dhyan dijiye — ye dono limit non-addressable zone ke liye hain. Clause 4.2.1 kehta hai ki addressable system mein bhi zoning indication deni chahiye.
| Cheez | Conventional | Addressable |
|---|---|---|
| Panel kya batata hai | Sirf zone number | Har device alag (cl. 3.4) |
| Ek circuit par | Zone par 20 detector (cl. 4.1.2) | Loop par 128 device tak (cl. 4.2.4.2) |
| Aag dhoondhne mein | 30 m tak chalna (cl. 4.2.2) | Device ka naam panel par |
| Wiring | Har zone ka alag circuit | Class A return loop (cl. 4.2.4) |
| Short circuit par | Poora zone jaata hai | Isolator ek segment rokta hai (cl. 4.2.4.3) |
Business ke liye addressable system ka asli fayda kya hai?
Business ke liye fayda teen jagah dikhta hai: response time, downtime aur maintenance. Panel aapko dhoondhne nahi bhejta. Ek kharab detector sirf apni jagah par flag hota hai. Aur jab panel bataye ki kaunsa detector dusty hai, to service call plan hoti hai, shutdown nahi.
NCRB ki Accidental Deaths & Suicides in India 2023 ke mutabik 2023 mein 7,054 fire accident case darj hue aur 6,891 log maare gaye. Cases 7,566 se ghatkar 7,054 aaye, par electrical short circuit category 1,567 se badhkar 1,780 case ho gayi. SP 7:2026 clause 4.9(e) assembly, institutional aur 30 m se unchi building ke electrical shaft aur lift machine room mein detector lagane ki salah deta hai.
India mein kaunse standards aur niyam addressable system par lagte hain?
India mein base document IS 2189 hai aur uske upar building code baithta hai. 2026 mein dono badle. SP 7:2026 ke foreword ka point 17 kehta hai: “The clause on fire detection and alarm system was completely reviewed and updated as per the latest practices.” Aur SP 7 ki referenced-standards list entry (26) par IS 2189 : 2026 likha hai, 2008 nahi; humne ye khud us list mein dekha. Yahan ke clause numbers 2008 revision se hain, isliye tender se pehle 2026 edition confirm kijiye.
Detector IS/ISO 7240 series par bante hain; SP 7 ki referenced-standards list Part 7 ko smoke, Part 5 ko heat aur Part 11 ko manual call points ke liye naam deti hai. Imported panel aksar EN 54 marking par aate hain. Baaki farq fire extinguisher aur fire alarm mein antar mein hai.
Kis building par compulsory hai? SP 7:2026 Table 7E (Business Buildings) mein 500 m² tak aur 15 m tak, dono saath, self-certification chalta hai. Uske upar Automatic Detection and Alarm System aur Public Address & Voice Evacuation dono “R” yaani required ho jaate hain. Table 7G industrial mein trigger hazard class se badalta hai: low (G-1) 2,001 m² se, moderate (G-2) 501 m² se, high (G-3) 251 m² se. Pehle hazard class confirm kijiye, phir area.
Loop, zone aur fault isolator kaise choose karein?
Loop design hi wo jagah hai jahan addressable system ka paisa bachta ya barbaad hota hai. Sab IS 2189:2008 clause 4.2.4 se.
| Rule | Limit (IS 2189:2008) | Site par matlab |
|---|---|---|
| Loop lambai (4.2.4.1) | 3,000 m se zyada nahi | Bade shed mein doosra loop card |
| Wire size (4.2.4.1) | 1.5 mm² se kam nahi | Patli cable par voltage girta hai |
| Loading (4.2.4.2) | Capacity ka 90 percent tak | Expansion ke liye jagah |
| Device per loop (4.2.4.2) | 128 tak, make par depend | Panel size isi se tay |
| Zone per loop (4.2.4.3) | 8 se zyada nahi | Ek loop poori building nahi uthata |
| Isolator (4.2.4.3) | Har zone mein kam se kam 2 | Fault ek segment tak rukta hai |

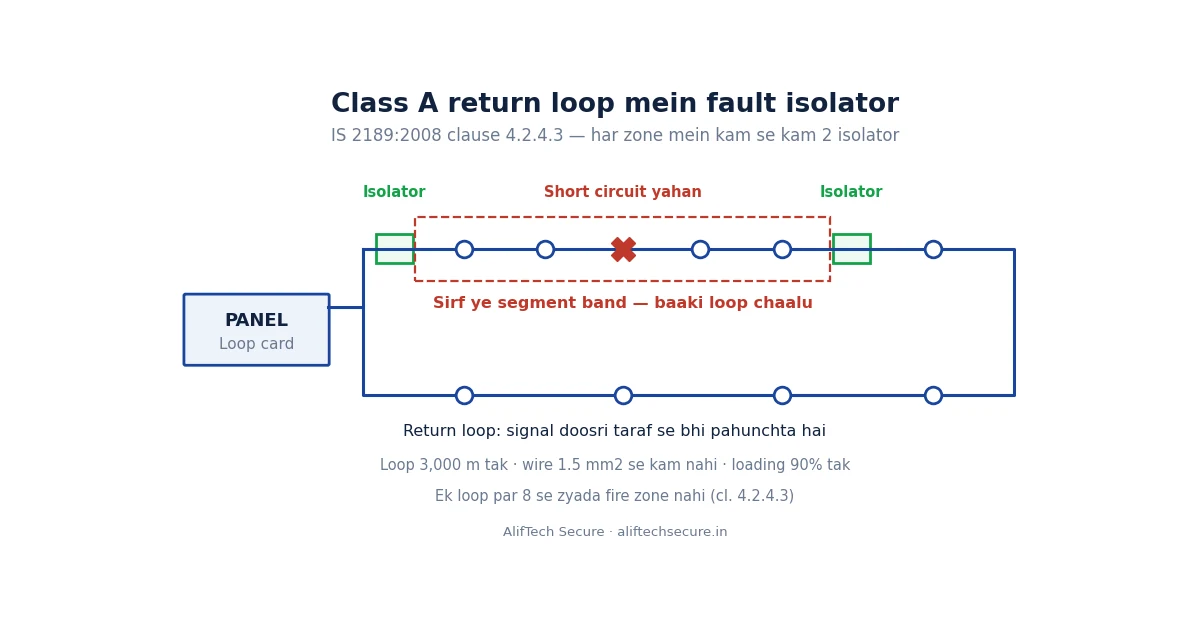

Clause 3.62 isolator ko aise define karta hai: “Devices which may be connected into a transmission path… to limit the consequences of low parallel resistance faults”. Clause 4.2.4.3 do guidance deta hai: har zone mein do isolator, aur har 20–30 device par ek pair. Dono mein se zyada wala lijiye; minimum do compliance hai, 20–30 wala practical protection.
Installation aur commissioning mein kaunsi galtiyan hoti hain?
Installation ki galtiyan wiring aur documentation mein hoti hain.
Class B wiring par loop chalana
IS 2189 clause 4.2.4 kehta hai “Loop shall be of Class A wiring… will be return loop”. Class B mein cable toota to aage sab andha; return loop mein signal doosri taraf se aa jaata hai.
Addressable panel par zoning indication chhodna
Clause 4.2.1 kehta hai ki addressable system mein bhi zone indication chahiye, kyunki zone lamp text display se jaldi samajh aata hai. Fire brigade ko naksha yaad nahi hota.
Device numbering register na banana
Clause 6.1 commissioning se pehle har detector ko identification number deta hai, jaise Z 1/SOI/20 (Smoke Detector Ionization, Zone 1, 20th detector), aur ye record control centre mein rehta hai. Warna do saal baad address 47 kahan lagi, koi nahi bata payega.
Metro annex ka response-indicator rule galat jagah lagana
SP 7:2026 ka metro-station annex (clause H-10.2.8) kehta hai: “Response indicator should not be provided with addressable type fire alarm system.” Wahi clause backup power bhi deta hai: 24 ghante quiescent, 5 minute alarm, 20 percent battery margin. Ye metro ka rule hai, par panel specify karte waqt achha benchmark.
Indore aur Pithampur ki site par kya alag dikhta hai?
Indore aur Pithampur mein do cheezein design badal deti hain: dhool aur building ka size. Machining sheds mein metal dust detector chamber mein baith jaati hai, aur panel sirf “Zone 3” bolta hai. Wahi 30 metre search distance das minute ban jaata hai.
Field note, March 2026 — Pithampur: shift change ke waqt panel ne zone dikhaya. Supervisor ne pehle galat bay check ki, phir doosri. Aag nahi thi, ek dusty detector tha; par us delay ne shift rok di.
Field note, May 2026 — New Palasia, Indore: ek commercial floor par false ceiling ke andar detector base ka wire dab kar short ho gaya. Loop par isolator module nahi tha, to poora loop gir gaya. Isolator pair ke baad wahi fault ek segment tak ruka.
Size ka angle bhi local hai. Pithampur mein log apne shed ko “chhota” maan lete hain, par hazard class moderate ho to trigger 501 m² par hi aa jaata hai. 585+ installations ke baad pattern saaf hai: log poori property ke hisaab se sochte hain, jabki table per-building chalti hai. Factory ke liye factory fire safety compliance MP padhiye; ghar ke rules ghar ke fire alarm niyam mein hain.
Key Takeaways
- Quotation mein loop count, device per loop aur isolator count alag-alag likhwaiye.
- Area, height aur hazard class naap kar SP 7:2026 Table 7E ya 7G se match kijiye.
- Loop 90 percent se zyada bhara ho to expansion plan maangiye.
- Har zone mein do isolator, aur har 20–30 device par ek pair — dono check kijiye.
- Commissioning par device identification register aur test certificate lijiye.
- Yahan ke clause numbers IS 2189:2008 ke hain; current edition BIS se confirm kijiye.
Aksar poochhe jane wale sawaal
Chhoti office ke liye addressable system zaroori hai kya?
Nahi, agar area 500 m² tak aur height 15 m tak hai. SP 7:2026 Table 7E dono condition saath poori hone par certified building professional ki self-certification accept karta hai. Isse upar detection aur voice evacuation required ho jaate hain.
Ek addressable loop par kitne detector lag sakte hain?
IS 2189:2008 clause 4.2.4.2 kehta hai ki count manufacturer ki recommendation par depend karta hai, aur ye 128 device per loop tak jaata hai. Wahi clause loop ko us full capacity ka 90 percent se zyada bharne se saaf rokta hai.
Fault isolator na lagaya to kya hoga?
Loop par ek short circuit poore loop ko panel se kaat sakta hai. IS 2189:2008 clause 4.2.4.3 har zone mein kam se kam do isolator maangta hai, aur har 20–30 detector ya call point par ek isolator pair recommend karta hai.
Addressable panel par zone lamp ki zaroorat hai kya?
Haan. IS 2189:2008 clause 4.2.1 kehta hai ki addressable system mein bhi zoning indication deni chahiye, kyunki zone lamp text display se jaldi samajh aata hai aur “at a glance” overview deta hai. Ye unke liye hai jo building se waaqif nahi.
NBC 2016 ab bhi lagu hai ya SP 7:2026?
BIS ne SP 7:2026 National Building Construction Standards jaari kiya hai, aur uska Part F fire and life safety cover karta hai. Foreword ke point 17 ke mutabik fire detection wala clause poora review karke update kiya gaya. Local authority se edition confirm kijiye.
Purana conventional system addressable mein convert ho sakta hai?
Haan, partially. IS 2189:2008 clause 4.2.4.4 partially addressable system ki baat karta hai, jisme zone addressable module loop par lagakar purane non-addressable detector jodte hain. Jahan wo lage hain, wahan conventional zone ke niyam (20 detector per zone) lagu rehte hain.
Aage kya karein
Ab jab aap jaante hain ki addressable fire alarm kya hota hai, faisla technology ka nahi, site ka hai. Pehle area, height aur hazard class naapiye, phir SP 7:2026 ki occupancy table se match kijiye, aur tab loop count, device count aur isolator count wali line-item quotation maangiye. Yahi teen numbers quotation ki asli cost drivers hain. Hamare ELV solutions isi tarah bante hain: standard pehle, product baad mein.
