Naya office ban raha hai aur electrician keh raha hai “cable hum daal denge”? Rukiye. Structured cabling kya hota hai hindi mein — ye pehle samajhna zaroori hai, kyunki deewar band hone ke baad cable badalna teen guna mehnga padta hai.
Seedha jawab: Structured cabling ek planned network wiring system hai jisme har cable, patch panel aur outlet ek fixed standard par lagta hai — marzi se nahi. India ka Telecommunication Engineering Centre (TEC) iske liye GR/SLC-01/02 rakhta hai, jo ek horizontal cable ko 90 metre par rokta hai — aur 40°C par wahi limit ghatkar 84 metre reh jati hai.
Aapka network sirf utna hi tez hai jitna uske peeche ka cable. Switch naya ho, internet 1 Gbps ho, phir bhi cable 90 metre se lamba khinch diya gaya ho to camera atkega, aur galti kahan hai koi nahi bata payega. Isi wajah se badi companies cable ko “wiring” nahi, infrastructure maanti hain. Aaj usi cable par CCTV camera, access reader, WiFi access point aur IP phone — sab power aur data le rahe hain. Ek galat cable chaar system girata hai.
Jaldi mein? Ye chaar baatein yaad rakhein
- Horizontal cable 90 metre; 40°C par ghatkar 84 metre.
- Cat 6 ke liye TEC 23 AWG solid copper maangta hai.
- TIA ka current revision ANSI/TIA-568.2-E hai, 5 November 2024 ka.
- PoE bundle mein TIA 15°C se zyada temperature rise allow nahi karta.
Structured cabling kya hota hai hindi mein, aur ise system kyun kehte hain?
Structured cabling ka matlab hai poori building ki network wiring ko ek tay-shuda dhaanche mein daalna — cable, patch panel, outlet, rack, labelling aur testing, sab ek likhe standard par. Iska ulta “point-to-point” wiring hai, jisme har cable seedha switch tak jata hai. Wo sasta lagta hai, phir rack spaghetti ban jata hai.
System kehne ki wajah ye hai ki iske hisse alag hote hain. TEC ki Structured LAN Cabling generic requirement, GR/SLC-01/02, ise chhe sub-system mein todti hai: building entrance, backbone, telecommunication closet, horizontal cabling, work area aur cross-connect. Isi wajah se hum cabling ka kaam Indore mein survey se shuru karte hain.
Structured cabling se office ko asli fayda kya milta hai?
Asli fayda teen jagah dikhta hai: fault dhoondhne ka time, badlav ka kharcha, aur system ki umar. Jab har cable dono taraf label ho aur patch panel par port number likha ho, to dead point paanch minute mein milta hai. TEC isliye cable labels ko “machine typed” aur termination se 100 mm par maangti hai.
Doosra badlav ka: team floor badalti hai to sirf patch cord badalta hai. Teesra umar ka: switch paanch saal mein badalta hai, cable pandrah saal. Cabling phir bhi active device ki kami nahi chhupati; IT AMC apni jagah zaroori hai.
Kaun se standard structured cabling ko control karte hain?
Standards is kaam ki reedh hain. India mein TEC ki GR/SLC-01/02 baseline deti hai, jo TIA/EIA-568-B aur ISO/IEC 11801 ko reference karti hai — par wo GR September 2005 ki hai. TIA ne ANSI/TIA-568.2-E, 5 November 2024 ko publish kiya, jo 568.2-D ko replace karta hai. Numbers wahi hain; naam naya hai.

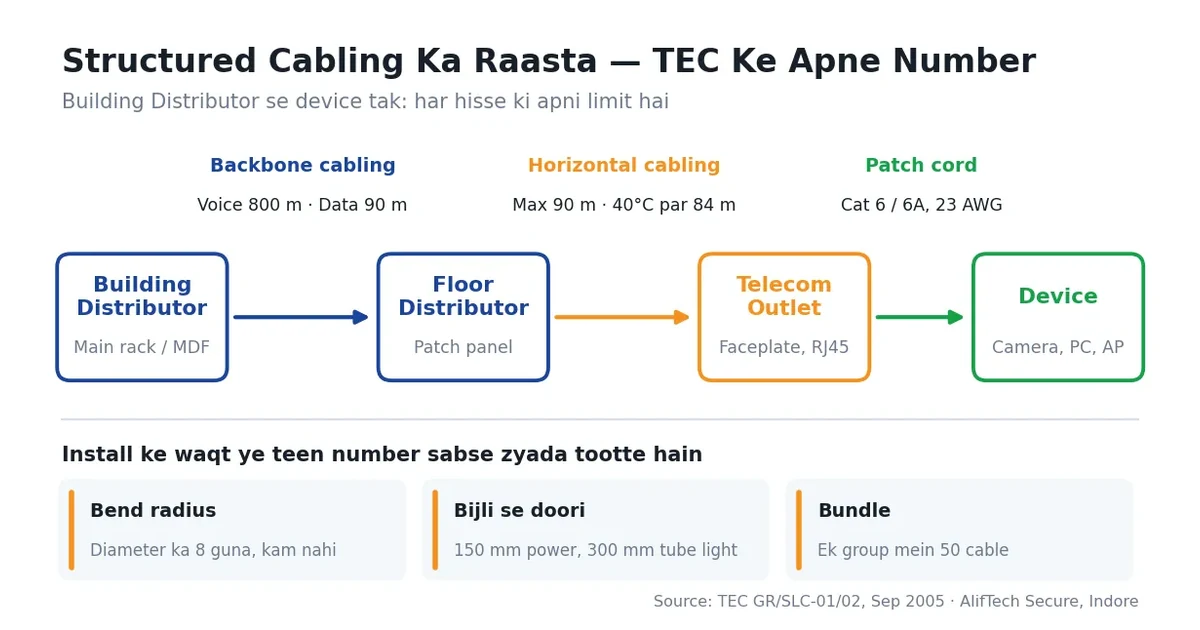

90 metre aur 100 metre — dono sahi hain. 90 metre sirf deewar ke andar ka fixed horizontal cable hai, jise permanent link kehte hain. Uske dono sire par patch cord judta hai; TEC 1.2 se 12.8 metre tak ke patch cord specify karti hai. Cable plus patch cord milkar channel banta hai, aur TEC apne NEXT limits isi 100-metre channel par deti hai.
Standards ka scorecard. TEC GR/SLC-01/02 (Sep 2005) — 90 metre, Cat 6 ke liye 23 AWG solid copper, twist 12 se 30 per foot, Cat 6 channel 200 MHz tak specified aur 250 MHz tak tested.
Power ka pehlu naya hai: IEEE 802.3bt Type 4 ke liye Cisco ka cabling analysis 433 mA per conductor batata hai, aur 75°C rated 23 AWG Cat 6A recommend karta hai.
Cat 6 aur Cat 6A mein kya antar hai — office ke liye kaunsa theek hai?
Cat 6 aur Cat 6A ka antar bandwidth aur garmi sehne ki taakat ka hai, naam ka nahi. CommScope ke Cat 6A fact file ke mutabiq Cat 6A 500 MHz par specified hai aur 10GBASE-T ko poore 100 metre le jata hai. Cat 6 ka maamla shartein waala hai: usi page par likha hai ki IEEE 802.3an ka objective “at least 55m to 100m” tha, aur jo cheez electronics theek nahi kar sakti wo hai alien crosstalk — paas pade cable ka shor. Isliye Cat 6 par 10G ki lambai installation par tay hoti hai.
| Baat | Cat 5e | Cat 6 | Cat 6A |
|---|---|---|---|
| TEC ka minimum conductor | 24 AWG | 23 AWG | 23 AWG (Cisco: PoE ke liye) |
| Bandwidth | 100 MHz | 200 MHz channel | 500 MHz |
| 10GBASE-T (IEEE 802.3an) | Nahi | 55–100 m, install par tay | Poore 100 m |
| Leviton test data, 15°C rise par | 52 cable | 64 cable | 74 cable |
| Kahan theek hai | Purana retrofit | Chhota office | Naya office, CCTV, WiFi 6/7 |
Faisla seedha hai: naye office mein Cat 6A daaliye. Cable ki keemat project ka chhota hissa hai; dobara khinchna poora kharcha.
Cabling install karte waqt kaun si galtiyan sabse mehngi padti hain?
Galtiyan wahin hoti hain jahan nazar nahi jati — pull aur route ke waqt. TEC ki GR in sabke number deti hai, aur wahi site par tootte hain.
| Rule | TEC ka number | Todne par kya hota hai |
|---|---|---|
| Bend radius | Diameter ka 8 guna | Twist bigadta hai, NEXT fail |
| Hauling tension | 11.3 kg se zyada nahi | Conductor patla, resistance badhta hai |
| Ek pull mein mod | Do 90° bend se zyada nahi | Cable jacket chhilta hai |
| Bijli ke cable se doori | 150 mm power, 300 mm tube light | Noise, packet error |
| Bundle | Ek group mein 50 cable | PoE par garmi jama hoti hai |
Sabse badi galti testing skip karna hai. TEC kehti hai: “test certificate and test report shall be furnished”. Har port ka report maangiye.
Site se (March 2026): New Palasia ke ek office mein teen port hafte mein do baar girte the. Cable bijli ke same tray mein pade the, bundle 60 se zyada ka. Route alag kiya, bundle tode, port certify kiye — shikayat khatam.
Indore aur Pithampur ki garmi structured cabling par kya asar daalti hai?
Indore aur Pithampur ki garmi is kaam ka sabse andekha factor hai, aur TEC ne ise 2005 mein likh diya tha. GR kehti hai: “at 20 degrees Celsius, if the temperature is 40 degrees the length shall not cross 84 meters”. Indore ke top-floor false ceiling mein May-June ki dopahar humne khud 40°C paar hote dekha hai. Yaani jo 88-metre run basement mein theek hai, wo wahan standard se bahar hai.
Garmi ka dohra hisaab. PoE ke liye TIA “15 degrees as the maximum allowed temperature rise above ambient” maanta hai, aur Leviton ke test data par us limit tak Cat 5e 52, Cat 6 64 aur Cat 6A 74 cable ka bundle jhelta hai. Pithampur ke shop floor par ambient hi 38°C ho, to margin pehle hi aadha kharch hai.
Isliye hum Pithampur jaise manufacturing plants mein bundle chhote rakhte hain, riser shaded route se le jate hain, aur server room temperature pehle tay karte hain. 2012 se 585+ installations aur 10,000+ camera ke baad ek baat pakki hai: garmi cable ko dheere maarti hai.
Site se (May 2026): Pithampur ke ek plant mein shift change par network slow hota tha. 46 cable ka bundle aise duct mein tha jahan din bhar dhoop padti thi. Bundle teen hisson mein baanta; reading normal.
Key Takeaways — ab kya karein
- Site survey karwaiye aur sabse lamba run naapiye; 85 metre paar ho to route badliye.
- Naye office ke liye Cat 6A specify kijiye, quotation mein AWG likhwaiye.
- Handover par har port ka certification report likhit mein maangiye.
- PoE runs ke bundle chhote rakhwaiye; route dhoop se bachaiye.
- Cable ke dono sire aur patch panel port label karwaiye.
Aksar pooche jane wale sawaal
Structured cabling aur normal networking wiring mein kya farq hai?
Normal wiring mein har cable marzi se khinch diya jata hai. Structured cabling mein poori building ek tay dhaanche mein bandhti hai — horizontal, backbone, closet, work area. TEC ki GR/SLC-01/02 isi dhaanche ko define karti hai aur run 90 metre par rokti hai.
Ek cable ki lambai 90 metre se zyada ho to kya karein?
Us run ko todiye. Beech mein ek telecommunication closet ya floor distributor banaiye, aur wahan se naya 90-metre run shuru kijiye. 40°C par TEC ki limit ghatkar 84 metre reh jati hai, isliye garam top floor par 80 metre par rukiye.
Cat 6 kaafi hai ya Cat 6A hi lena chahiye?
Agar aaj sirf computer aur printer hain to Cat 6 chal jayega. Lekin CCTV, WiFi 6 ya PoE load aane wala ho to Cat 6A lijiye. Wo 500 MHz par specified hai aur 10GBASE-T ko poore 100 metre le jata hai, Cat 6 ki tarah lambai par nahi rukta.
Structured cabling ka test report kaisa hota hai?
Ek certification tester har port par insertion loss, NEXT, return loss aur length naapta hai, aur PASS ya FAIL deta hai. TEC ki GR kehti hai ki test certificate aur report diya jana chahiye — port number, length aur pass status ke saath.
Ek bundle mein 50 cable ki limit hai ya 74?
Dono alag cheezein hain. TEC ki GR install rule deti hai — ek group mein 50 cable. Leviton ka 74 thermal test data hai, TIA ke 15°C temperature-rise limit par. India mein TEC ka 50 ka rule follow kijiye; 74 garmi ka reference hai, permission nahi.
Cabling ke saath managed switch bhi zaroori hai?
Haan, dono milkar kaam karte hain. Cable passive plant hai, switch active dimaag. India mein switch ka apna standard hai — TEC 48060:2026, Release 08, January 2026 — jo har category mein SNMP v2/v3, IEEE 802.1q VLAN tagging aur spanning tree maangta hai.
Aage ka raasta
To structured cabling kya hota hai hindi mein — ye aapke office ki wo neev hai jo deewar band hone ke baad dikhai nahi deti, par har din kaam karti hai. TEC ki GR se ANSI/TIA-568.2-E tak sab ek hi baat kehte hain: lambai naapiye, cable theek chuniye, route soch kar banaiye, testing ka kagaz lijiye. Indore mein paanchvi cheez garmi hai, jo TEC ke 84-metre clause mein likhi hai. Jo team ye pehle din tay kar leti hai, uska network paanch saal baad bhi shaant rehta hai.
