RFID card kya hota hai hindi mein — sabse chhota jawab yeh hai: woh plastic card jo aap gate par tap karte hain. Andar ek antenna coil aur ek chhoti chip hai. Battery nahi hoti. Reader ka radio field use chalu karta hai. Card jaagta hai, apna number bhejta hai, phir chup ho jaata hai. Faisla controller leta hai, card nahi. Gate par dikkat aksar card ki nahi, us field ki hoti hai.
Seedha jawab: RFID card ek passive radio device hai. 13.56 MHz par chalne wale ISO/IEC 14443 proximity card ki range NIST ke mutabik sirf 7 se 15 centimetre hai. Battery nahi hoti; reader ka electromagnetic field hi card ko power deta hai.
TL;DR
- Passive RFID card mein battery nahi hoti; power reader ke field se banta hai.
- Range coil ko mili power se bandhi hai — isliye 14443 card 7–15 cm par rukta hai.
- FASTag bhi RFID hai, par doosre standard par — isliye chalti gaadi padhta hai.
- NIST ki 2007 table mein ISO/IEC 14443 ke confidentiality column mein “None in standard” hai.
- Card ka swipe log DPDP Act, 2023 ke hisaab se personal data hai.
RFID card kya hota hai hindi mein, aur battery kyun nahi hoti?
RFID ka matlab hai Radio Frequency Identification. RFID card ek battery-rahit radio tag hai jo reader ki bheji energy se jawab deta hai. NIST ki Special Publication 800-98 likhti hai: “A passive tag uses the electromagnetic energy it receives from a reader’s transmission to reply to the reader”. Uska jawab reader ke signal ka chhota hissa hota hai, aur yahi kam power range seemit rakhti hai.
Usi document ke mutabik “on most passive tags, the largest component on the tag is its antenna”. Chip chawal ke dane se chhoti hai, aur coil poore card mein ghoomti hai. NIST ke dono documents purane hain — 2007 aur 2008; ISO/IEC 14443 ka Part 1 baad mein revise hua, abhi ISO/IEC 14443-1:2016 chalta hai.
Coupling ka tareeqa hi range decide karta hai. NIST ke footnote ke mutabik LF aur HF wale passive tags “typically are inductively coupled and do not communicate via backscatter”, jabki UHF wale backscatter par. Yaani office card reader ke paas aakar transformer jaisa kaam karta hai.

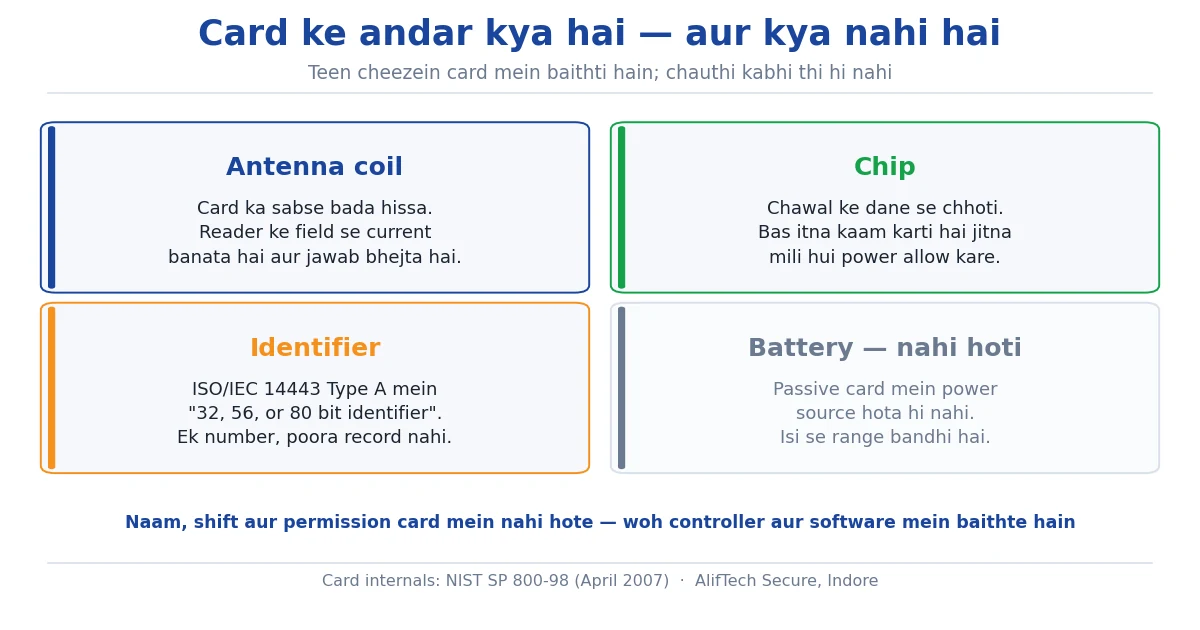

Card ke andar exactly kya likha hota hai?
Card ke andar aksar sirf ek number hota hai, poora record nahi. NIST ki standards table mein ISO/IEC 14443 Type A ka data column “32, 56, or 80 bit identifier” hai. ISO/IEC 15693 ka bada hai — “64 bit identifier, and up to 8 kbytes R/W memory”.
Employee ka naam aur shift card mein nahi hote — woh door controller ki setup aur configuration mein baithte hain.
RFID card kaise kaam karta hai?
- Reader lagaataar apna radio field chhodta rehta hai.
- Card field mein aata hai, coil mein current banta hai, chip jaag jaati hai.
- Chip apna identifier reader ko bhejti hai.
- Controller use apni list se milata hai aur lock ko current deta ya rokta hai.
Chaar step. Gate zyadatar baar step 2 par rukta hai.
125 kHz, 13.56 MHz aur 865 MHz cards mein kya farak hai?
Farak frequency ka hai, aur frequency seedha range decide karti hai. NIST ki interference table ke “RFID Applications” column mein 500 kHz se neeche wali line par “Access control, animal tagging, automobile immobilizers” hai. 13.553–13.567 MHz wali line par “Access control … and smart card applications”. LF band mein access control bhi hai, par NIST ki range table wahan sirf animal-tracking standard ka figure deti hai.
| Band | Standard | Range — NIST SP 800-98 (2007) ke mutabik |
|---|---|---|
| LF — NIST: “125 or 134 kHz (common US RFID usage)” | ISO 11784/11785 (animal tag) | 0.010 m se kam |
| HF, 13.56 MHz | ISO/IEC 14443 — proximity card | 7–15 cm |
| HF, 13.56 MHz | ISO/IEC 15693 — vicinity card | Lagbhag 1 metre |
| UHF, 860–960 MHz | EPC Gen-2 / ISO/IEC 18000-6C | Metre-level |
NIST ke ek aur paper ke mutabik 13.56 MHz par ISO 14443, 15693, 18000-3 aur 18092 chalte hain — aakhri wala NFC hai. UHF wali line India mein FASTag hai. IHMCL likhti hai ki uska National Highways toll program “RFID technology conforming to EPC Gen-2, ISO 18000-6C standards” par bana hai. NIST ke mutabik Gen-2 “is essentially equivalent to the ISO/IEC 18000-6C standard” hai, UHF 860–960 MHz par.
India ka band — sirf UHF ke liye. WPC Wing ki G.S.R. 853(E), 10 December 2021 ke Table-IV mein 865-868 MHz band ke RFID applications ko licence se chhoot hai, reader ke liye 2 W e.r.p. tak. Footnote kehta hai “RFID tags respond at a very low power level (-20 dBm e.r.p.)”. Us Note mein “personal identification, access control, proximity sensors” shaamil hain. Par yeh instrument UHF band ka hai — 13.56 MHz wala office card iske daayre mein nahi. Rule 5 kehta hai equipment “shall be type approved”.
RFID card clone kyun ho jaata hai?
Clone hone ki jad card mein nahi, standard ki baseline mein hai. NIST ki Appendix A table mein ISO/IEC 14443 ke “Confidentiality/Anonymity” column mein “None in standard” hai. ISO/IEC 15693 ke saamne “No onboard encryption or authentication”. Par usi table ka footnote saaf karta hai: “While the ISO/IEC 14443 itself does not provide confidentiality services, these services are available in many applications …”
Encryption card ke product layer se aata hai, air-interface standard se nahi. Quotation mein “RFID card” padhkar security maan na lijiye — poochhiye ki authentication hai ya sirf identifier.
Distance ka bhi ek jhatka hai. Usi NIST document mein darj hai ki ISO/IEC 14443 card ka “rogue scanning range … is at least 25 centimeters”. Alag se, researchers ne usi standard ki baat-cheet “from distances up to 15 meters using fixed antennas” sun li thi — doosra figure eavesdropping ka hai, card padhne ka nahi.
RFID card system lagate waqt kaunsi galtiyan hoti hain?
Reader ko metal par chipka dena
Sabse aam galti yahi hai. Inductively coupled card ko reader ke paas aana padta hai. Reader ka field metal frame par baithkar bigad jaata hai. Glass door ki steel patti par reader lagaya, to range aadhi.
Galat standard ka card mangwa lena
Client ne hands-free card maanga, vendor ne proximity bhej diya — ab log card reader se ragad rahe hain. Purchase order mein standard ka naam likhwaaiye, sirf frequency nahi.
Card ko akela layer maan lena
Card kho sakta hai, udhaar diya jaa sakta hai. Risk wale darwaze par PIN ya biometric saath rakhiye — jaise time attendance aur access control ek saath mein.
Indore aur Pithampur mein RFID cards ke saath kya hota hai?
Indore aur Pithampur mein card system do jagah atka, aur dono baar wajah range thi.
Field note — Pithampur, manufacturing shed. Subah shift-change par gate ke saamne line lag rahi thi, aur card kharab nahi thay. Reader loading bay ke metal shutter frame par laga tha, aur haath mein safety gloves the. Log card theek jagah tak la hi nahi paa rahe thay. Reader ko plaster wall par shift kiya, height kam ki, line khatam.
Field note — New Palasia, basement office. Reader lift lobby ke steel panel mein fit tha aur shaam ko complaint aati thi ki card kaam nahi karta. Karta tha — par tap ki exact jagah kisi ko pata nahi thi. Ek sticker aur ek LED ne ticket band kar diya.
Log ka sawaal MP mein utna hi zaroori hai. Neeche ki baat sirf DPDP Act ke baare mein hai.
Digital Personal Data Protection Act, 2023 ki Section 2(t) “personal data” ko “any data about an individual who is identifiable by or in relation to such data” kehti hai. Gate-entry record isi mein aata hai.
Section 8(5) kehti hai Data Fiduciary “shall protect personal data … by taking reasonable security safeguards to prevent personal data breach”. Schedule mein isi chook par jurmana “may extend to two hundred and fifty crore rupees” tak ja sakta hai — yeh ceiling hai, aam jurmana nahi. Kitne din record rakhna hai, woh MP ke Factory Act attendance register se judta hai.
Key Takeaways
- Card kharide se pehle standard poochhiye — 14443 ya 15693, sirf frequency nahi.
- Reader ko metal frame par mat lagaaiye; plaster wall par range wapas aati hai.
- Risk wale darwaze par doosri layer rakhiye — PIN ya biometric.
- Gate-entry log ko personal data maaniye; retention policy pehle likhiye.
- UHF reader lagwaayein to type approval ka kaagaz maangiye.
Frequently Asked Questions
RFID card mein battery hoti hai kya?
Passive RFID card mein battery nahi hoti. NIST SP 800-98 ke mutabik passive tag reader ki bheji electromagnetic energy se hi jawab deta hai, isliye uska signal reader ke signal ka chhota hissa hota hai. Range bhi isi se bandhi hai.
RFID card ki range kitni hoti hai?
Standard par depend karta hai. NIST ke mutabik ISO/IEC 14443 proximity card ki operating range lagbhag 7 se 15 centimetre hai, aur ISO/IEC 15693 vicinity card ki ek metre tak. Dono 13.56 MHz par hain; farak antenna aur protocol design ka hai.
Kya RFID card clone ho sakta hai?
Wajah standard ki baseline hai. NIST ki Appendix A table mein ISO/IEC 14443 ke confidentiality column mein “None in standard” hai. Usi table ka footnote kehta hai yeh services “available in many applications” hain — encryption product layer se aata hai.
FASTag aur office ka RFID card same cheez hain?
Dono RFID hain, par alag standard par. IHMCL ke mutabik FASTag “EPC Gen-2, ISO 18000-6C standards” par bana hai, jo NIST ke mutabik UHF 860–960 MHz band mein hai. Isliye FASTag chalti gaadi se padha jaata hai, office card tap maangta hai.
India mein RFID reader ke liye licence lagta hai?
WPC ki G.S.R. 853(E), 2021 ke mutabik 865-868 MHz band ke RFID applications ko licence se chhoot hai, non-interference basis par. Par Rule 5 kehta hai equipment “shall be type approved”. Yeh rules UHF ke liye hain, 13.56 MHz ke liye nahi.
Card ka entry record kitne din rakhna chahiye?
DPDP Act, 2023 ki Section 8(7)(a) purpose poora hone par data mitane ko kehti hai, lekin “unless retention is necessary for compliance with any law” ki chhoot ke saath. Factory records ke liye doosre kanoon retention maangte hain — period advisor se likhwa lijiye.
Conclusion
RFID card kya hota hai hindi mein — asli jawab yeh hai: woh ek battery-rahit antenna hai. Reader ke field mein jaagta hai aur ek number bhejta hai. Isse zyada kuch nahi. Isi wajah se system ki mazbooti teen cheezon par tikti hai — reader ki jagah, card ka standard, aur controller ki list.
