Gate par ghanti baji, screen par chehra aaya, button daba aur darwaza khul gaya. Sawaal yeh hai ki video door phone kaise kaam karta hai, aur beech mein exactly kya hota hai?
Chhota jawab: Video door phone do units ka system hai. Gate wali unit mein camera, mic, speaker; flat wali unit mein screen aur unlock button. Ghanti dabne par door station video-audio ek cable par monitor tak bhejta hai. Unlock button ek relay band karta hai, jo lock ko bijli deta ya rokta hai.
Vendor “2-wire” aur “IP” bolta hai, quotation par “lock output” likha hai, par kaun taar kya karta hai koi nahi batata. Do faisle isi par tikte hain: cable kaunsi padegi, aur bijli jaane par darwaza khula rahega ya band. Dono cable dalne se pehle lene hote hain, warna deewar dobara todni padti hai.
TL;DR — 30 second mein poori baat
- Door station = camera, mic, speaker, call button. Monitor = screen aur unlock button.
- Beech ka cable do tarah ka: 2-wire, ya Cat6 par IP.
- TEC ki GR horizontal UTP run ko 90 metre par rokti hai; 40 °C par 84 metre.
- Unlock seedha lock ko nahi, ek relay contact ko chalata hai.
- Fail safe lock bijli jaane par khulta hai; fail secure band rehta hai.
Video door phone kaise kaam karta hai — chaar step mein?
Poora kaam chaar step mein hota hai. Teen hisse — door station, cable aur monitor — usi order mein jude rehte hain.
- Call: Visitor call button dabata hai. Door station jaagta hai aur apna camera, mic aur speaker chalu karta hai.
- Transmission: Video aur audio ek hi cable par monitor tak jaate hain — analog kit mein 2-wire par, IP kit mein Cat6 par packet ban kar.
- Talk: Monitor par ring bajti hai aur live video dikhta hai. Answer dabayein, do-tarfa baat shuru.
- Unlock: Unlock button ek relay contact band karta hai, jo lock ki power line kuch second ke liye jodta ya todta hai.
Dhyan chauthe step par dein. Monitor khud lock ko bijli nahi deta. Woh ek switch band karta hai. Lock ki taaqat apne power supply se aati hai, aur yahi farak aadhi problem samjha deta hai.
Door station ke andar kya-kya hota hai?
Door station mein paanch cheezein hoti hain: camera, mic, speaker, call button aur terminal block.
Raat ke liye infrared LED lagti hain. Enclosure ko baarish aur dhakka jhelna padta hai, isliye rating likhwayein. Dahua ki DHI-KTD02 kit datasheet (2023) uske door station ka camera “CMOS low illumination 2 MP HD colorful 160° fisheye camera” batati hai, uski spec table wahi lens “H: 168.6°” par rakhti hai, aur enclosure ko “IK07 & IP65”. Uske ports mein “Electric Lock 1”, “Exit Button 1”, “Door Status Detection 1” aur “Power Output 1 × 12 VDC output, 200 mA” likhe hain. Yeh numbers isi ek model ke hain, har kit ke nahi.

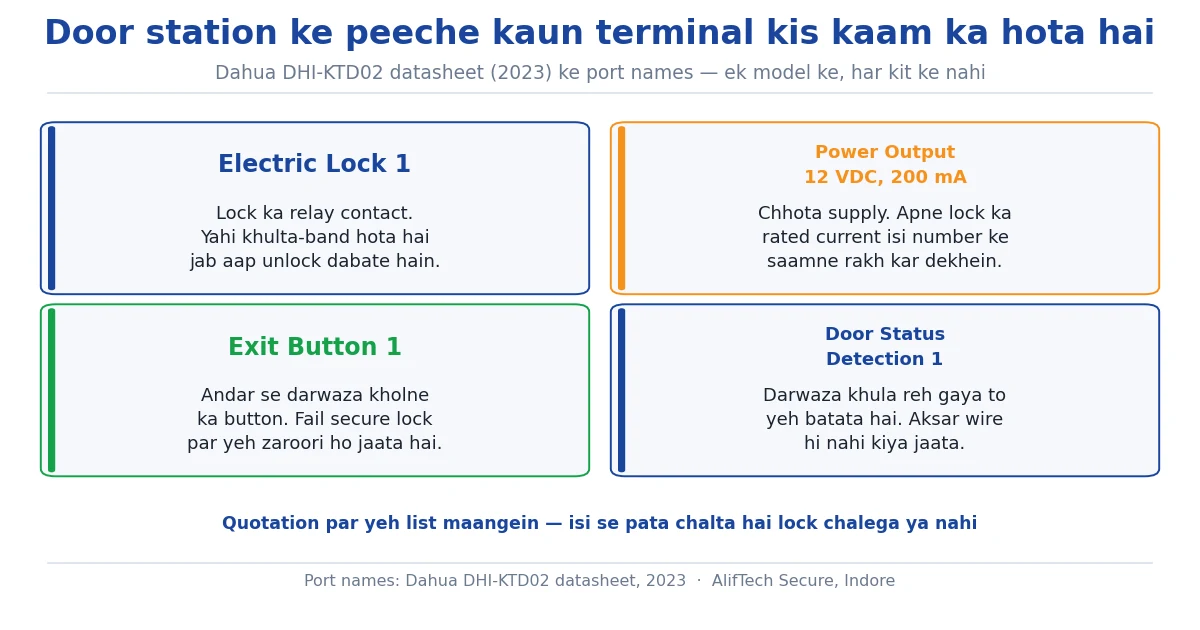

Terminal block ki list padhna seekh lein. Usi se pata chalta hai ki system aapka lock handle karega ya nahi. Door Status Detection wala terminal batata hai ki darwaza khula reh gaya. Aksar yeh wire hi nahi hota. 200 mA chhota number hai: apne lock ka rated current saamne rakhein.
Signal indoor monitor tak kaunse cable se pahunchta hai?
Do raaste hain, dono ki limit alag hai.
Pehla raasta 2-wire hai. Do core par power, audio aur video, sab kuch. Dahua usi datasheet mein monitor ka network port “One two-wire port and one 10Mbps/100Mbps Ethernet port (one of them can be selected)” batata hai.
Doosra raasta Cat6 par IP hai. Door station network device ban jaata hai aur structured cabling backbone use karta hai. Telecommunication Engineering Centre ki GR/SLC-01/02 clause 1.2.3.1(f) kehti hai horizontal cable ka run “shall not exceed 90 meters (at 20 degrees Celsius, if the temperature is 40 degrees the length shall not cross 84 meters)”. Yeh limit floor distributor se outlet tak ke UTP run par hai, 2-wire par nahi. Feature ka IP vs analog comparison alag hai.
| Point | 2-wire | Cat6 par IP — limit TEC GR/SLC-01/02 ke mutabik (UTP run par) |
|---|---|---|
| Cable | 2 core | 4-pair UTP, Cat 6 mein 23 AWG minimum |
| Run ki limit | Kit ke manual par | 90 metre; 40 °C par 84 metre |
| Power | Usi do taar par | PoE ya alag adaptor |
Bijli jaane par darwaza khulega ya band — lock ke do type?
Bijli jaane par kya hoga, yeh quotation ke ek shabd se tay hota hai.
National Institutes of Health ki June 2020 technical bulletin: “Fail safe means when no power is applied the door is unlocked; fail secure means when no power is applied the door is locked.” Electromagnetic lock ko wahi bulletin “typically fail safe” batata hai. Bulletin US ke NFPA codes par chalta hai, Indian code par nahi.
Usi bulletin ke mutabik fail secure ko bijli sirf kholne ke liye chahiye, fail safe ko “continual power consumption”.
Escape route par alag baat lagti hai. Bureau of Indian Standards ke IS 1644 : 2013 ka clause 3.8.5 kehta hai exit doorway “should be openable from the side which they serve without the use of a key”. Modality dekhiye — “should”, nahi “shall”. Clause exit doorway ke liye hai, flat ke darwaze ke liye nahi.
| Point | Fail safe | Fail secure |
|---|---|---|
| Bijli nahi hai to | Darwaza unlocked | Darwaza locked |
| Aam taur par | Electromagnetic lock | Electric strike |
| Current | Lagataar | Kholte waqt |
| Nikalne ka raasta | Release device | Exit button |
Andar se nikalne ka raasta dono case mein chahiye. Bulletin ke mutabik electromagnetic lock ko egress ke liye ek “release device” chahiye — request-to-exit switch ya pushbutton. Fail secure strike par wahi kaam exit button karta hai.
India mein video door phone par kaunse standard aur niyam lagte hain?
Do cheezein lagti hain: equipment ka standard, aur data ka kanoon.
Building entry ke equipment ki apni alag product family hai. IEC ka iske liye standard IEC 62820-1-1 hai. Standards catalogue ke record ke mutabik iska naya edition March 2026 ka hai aur 2016 edition ki jagah leta hai. Telephony ka standard yeh nahi — intercom aur EPABX ka farak isi wajah se maayne rakhta hai.
Ek baat quotation par check karein. Dahua ki wahi datasheet certifications mein “CE; FCC” likhti hai, aur yeh Indian certification nahi hai. Vendor se apne model ka Indian status poochhein.
Data ka hissa Digital Personal Data Protection Act, 2023 se aata hai. Act ki section 2(t) “personal data” ko “any data about an individual who is identifiable by or in relation to such data” kehti hai, section 6(1) consent ko “free, specific, informed, unconditional and unambiguous” maangti hai, aur section 8(5) “reasonable security safeguards” ki duty daalti hai. Gazette text MeitY par hai.
Practical matlab: gate par camera ka board lagayein, aur app ka default password badlein.
Indore aur MP ki buildings mein kya alag dhyan rakhna padta hai?
Teen cheezein har site par dikhti hain: garmi, dhool, bijli.
Garmi pehli hai. India Meteorological Department plains ke liye heat wave ka criterion 40 °C rakhta hai, aur yeh bahar ka weather-station maximum hai. Door station usi dhoop mein lagta hai. KTD02 datasheet par woh −30 se +60 °C ka hai, monitor sirf −10 se +55 °C ka. TEC ki 84 metre wali limit cable ke apne ambient par lagti hai, bahar ke mausam par nahi.
Site se: Pithampur ki ek unit ke gate par door station chaar mahine mein dhundhla pad gaya. Camera kharab nahi tha, lens par dhool jam gayi thi. Hood aur quarterly wipe ne use theek rakha.
Bijli teesri cheez hai, aur yahi lock ka faisla palat deti hai. Jahan din mein kai baar supply jaati hai, wahan magnetic lock matlab darwaza baar-baar khula. Wahan fail secure strike jaata hai.
Site se: New Palasia ki ek basement office mein picture aati thi par ring dheemi thi. Galti cable ki nahi thi — adaptor lift panel se feed ho raha tha. Alag circuit par shift karte hi ring saaf ho gayi.
Key Takeaways
- Quotation par terminals ki list maangein, sirf model number nahi.
- Apne lock ka rated current door station ke output se compare karein.
- Fail safe ya fail secure — yeh shabd purchase order par likhein.
- Escape route wale darwaze par lock ka type fire consultant se confirm karein.
- Andar ki side par exit button zaroor lagwayein, lock koi bhi ho.
- Door station ka adaptor alag circuit par rakhein; monitor UPS par.
Aksar poochhe jaane wale sawaal
Video door phone aur CCTV camera mein kya antar hai?
Dono mein camera hai, par kaam alag. CCTV record karne ke liye bana hai, door phone baat karne aur darwaza kholne ke liye. KTD02 mein SD card daalein to woh “Leave Videos” bhi rakhta hai, par CCTV ki jagah nahi leta. Uske lens ka horizontal field of view datasheet par “H: 168.6°” hai.
2-wire aur Cat6 — ghar ke liye kaunsa theek hai?
Purane flat mein 2-wire, naye project mein Cat6. Wajah doori aur cable ki jagah hai. TEC ki GR UTP run ko 90 metre par rokti hai, 40 °C par 84 metre. Riser khul raha ho to Cat6 daal dein — wahi cable camera bhi uthayega.
Bijli jaane par video door phone kaam karta hai kya?
Backup ke bina nahi. Dono units ko power chahiye. Load chhota hai: KTD02 ka monitor datasheet par standby mein 2 W tak aur chalte waqt 6 W tak leta hai. Chhota UPS dono sambhal leta hai; lock ka backup alag chahiye.
Door station ka 12 V output lock chalane ke liye kaafi hai kya?
Har lock ke liye nahi. KTD02 ke door station ka power output datasheet par 12 VDC, 200 mA hai. Apne lock ki rating uske saamne rakh kar dekhein. Zyada current wale magnetic lock ko apna alag supply chahiye hota hai.
Video door phone se darwaza kholna fire safety ke hisaab se theek hai kya?
Darwaze par depend karta hai. BIS ke IS 1644 : 2013 ka clause 3.8.5 kehta hai exit doorway bina chaabi ke andar wali side se khul jaana chahiye. Clause “should” kehta hai, aur exit doorway ke liye hai. Escape route par fire consultant se poochh lein.
Purane flat mein bina todphod ke video door phone lag sakta hai kya?
Aam taur par haan, agar do core ka raasta already mojood hai. Purani bell ki wiring ya telephone conduit kai baar chal jaati hai, aur survey mein pata chalta hai. Warna deewar par casing-capping chalti hai. Installation ke step-by-step points alag likhe hain.
Nishkarsh
Ab aapko pata hai ki video door phone kaise kaam karta hai, aur kahan paisa barbaad hota hai. Chaar step aasaan hain. Mushkil do faisle unke peeche chhupe hain: cable ka raasta aur lock ka type. Dono cable dalne se pehle tay hote hain. Multi-apartment setup mein yeh faisle poori society ke liye ek saath lene hote hain.
